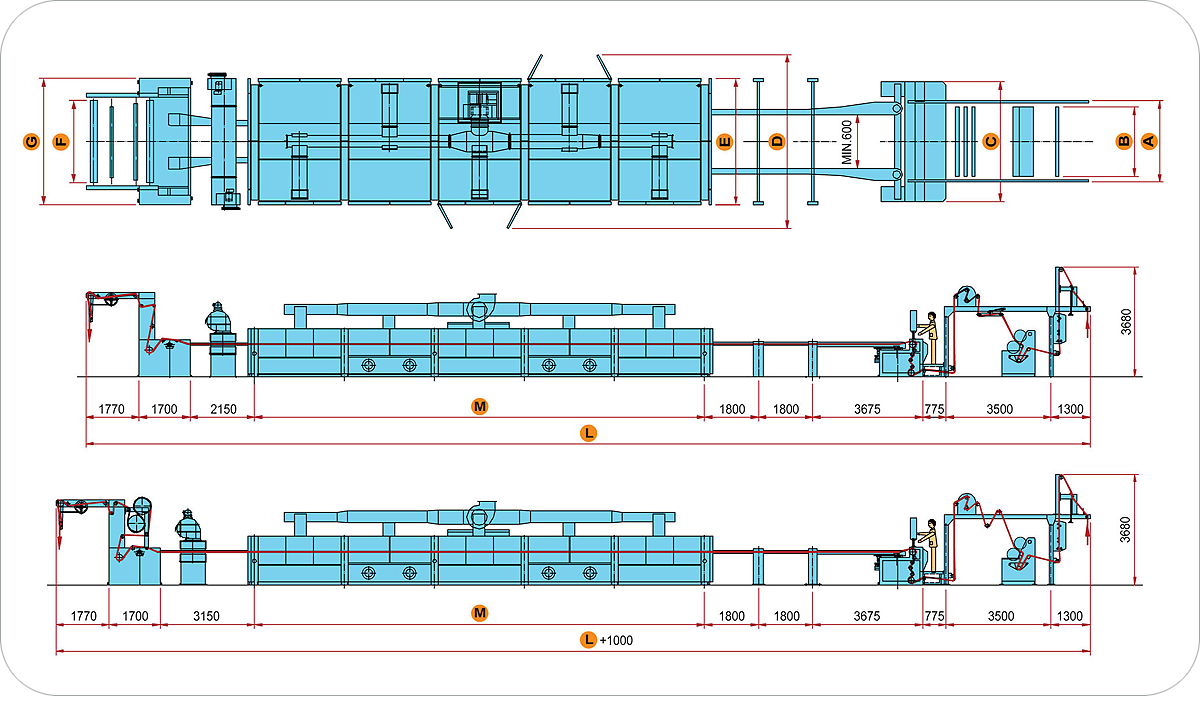

Type |
Working Width |
A |
B |
C |
D |
E |
F |
G |
2000 |
1900 |
2412 |
2000 |
3700 |
6950 |
3950 |
2250 |
3900 |
2300 |
2200 |
2712 |
2300 |
4000 |
7250 |
4250 |
2550 |
4200 |
2500 |
2400 |
2912 |
2500 |
4200 |
7450 |
4450 |
2750 |
4400 |
2700 |
2700 |
3112 |
2700 |
4350 |
7650 |
465 |
2950 |
4600 |
2800 |
2900 |
3212 |
2800 |
4550 |
7750 |
4750 |
3050 |
4700 |
3000 |
3100 |
3412 |
3000 |
4650 |
7950 |
4950 |
3250 |
4900 |
3200 |
3300 |
3612 |
3200 |
4850 |
8150 |
5150 |
3450 |
5100 |
3400 |
3300 |
3812 |
3400 |
5050 |
8350 |
5350 |
3650 |
5300 |
3600 |
3500 |
4012 |
3600 |
5250 |
8550 |
5550 |
3850 |
5500 |
3800 |
3700 |
4212 |
3800 |
5450 |
8750 |
5800 |
4050 |
5700 |
| Chanber | M(m,m) | L(m,m) | Circulating fan motor |
Design Speed m/min |
Maximum Electricity (KW) |
4 |
12000 |
30200 |
8 Sets x 10HP |
40 |
147 |
5 |
15000 |
33200 |
10 Sets x 10HP |
60 |
162 |
6 |
18000 |
36200 |
12 Sets x 10HP |
60 |
180 |
7 |
21000 |
39200 |
14 Sets x 10HP |
100 |
195 |
8 |
24000 |
42200 |
16 Sets x 10HP |
100 |
210 |
9 |
27000 |
45200 |
18 Sets x 10HP |
100 |
227 |
10 |
3000 |
48200 |
20 Sets x 10HP |
100 |
250 |
※本公司擁有設計變更之權力，尺寸如有變更不另行通知。※
