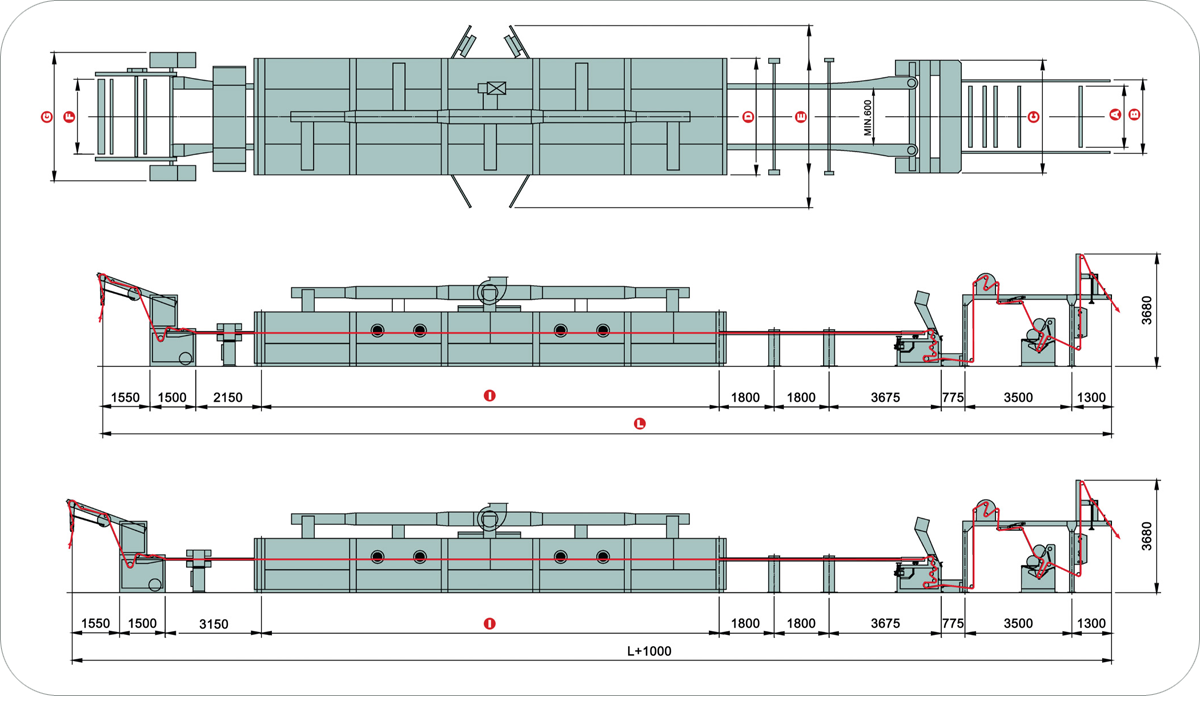

MODEL NO. |
A |
B |
C |
D |
E |
F |
G |
2000 |
2000 |
2415 |
3700 |
3860 |
6810 |
2250 |
4200 |
2300 |
2300 |
2715 |
4000 |
4210 |
7160 |
2600 |
4550 |
2500 |
2500 |
2915 |
4200 |
4410 |
7360 |
2800 |
4750 |
2700 |
2700 |
3115 |
4350 |
4560 |
7510 |
2950 |
4900 |
2800 |
2800 |
3215 |
4450 |
4660 |
7610 |
3050 |
5000 |
3000 |
3000 |
3415 |
4650 |
4860 |
7810 |
3250 |
5200 |
3200 |
3200 |
3615 |
4850 |
5060 |
8010 |
3450 |
5400 |
3400 |
3400 |
3815 |
5050 |
5260 |
8210 |
3650 |
5600 |
3600 |
3600 |
4015 |
5250 |
5460 |
8410 |
3850 |
5800 |
CHAMBER |
I(m,m) |
L(m,m) |
MAIN MOTOR KW |
MAIN MOTOR HP |
HEATER ELECTRIC,OIL,GAS |
CIRCULATING FAN MOTOR |
2 |
6000 |
24010 |
7.5 |
10 |
2 SETS |
4 SETS |
3 |
9000 |
27010 |
11.25 |
15 |
3 SETS |
6 SETS |
4 |
12000 |
30010 |
11.25 |
15 |
4 SETS |
8 SETS |
5 |
15000 |
33010 |
15 |
20 |
5 SETS |
10 SETS |
6 |
18000 |
36010 |
15 |
20 |
6 SETS |
12 SETS |
7 |
21000 |
39010 |
18.75 |
25 |
7 SETS |
14 SETS |
8 |
24000 |
42010 |
18.75 |
25 |
8 SETS |
16 SETS |
9 |
27000 |
45010 |
22 |
30 |
9 SETS |
18 SETS |
10 |
30000 |
48010 |
30 |
40 |
10 SETS |
20 SETS |
※本公司擁有設計變更之權力，尺寸如有變更不另行通知。※
