Machine Dimension and Power Requirement (LK-625S Series)

Placeholder image

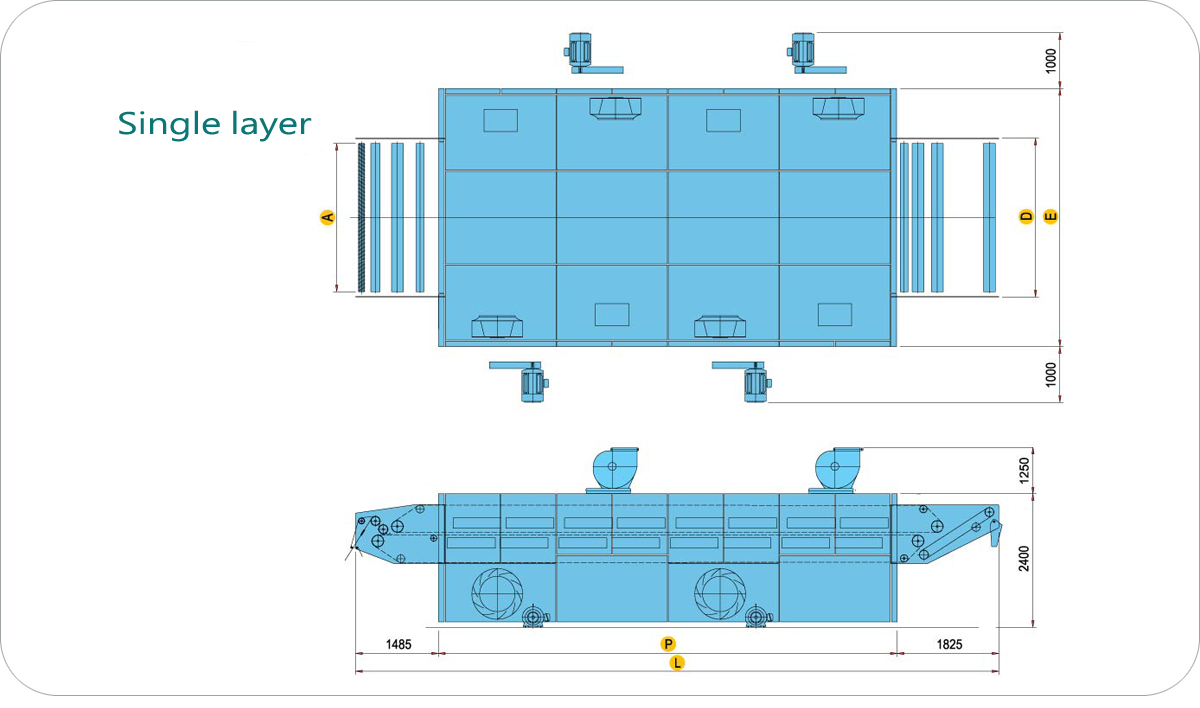

Machine Dimension

MODEL NO.
A
D
E
Working Width
Conveyor Width
2000
2160
2350
4130
1850
1950
2500
2660
2850
4630
2350
2450
2800
2960
3050
4930
2650
2750
3000
3160
3250
5130
2850
2950

Basic Design

Chanber
P
L
Max
Speed
FAN HP
Heating
Requirement
2
4230
9215
30M/min
2x40HP
60 (10k) Kcal
3
6230
11215
30M/min
3x40HP
90 (10k) Kcal
4
8230
13215
40M/min
4x40HP
1200 (10k) Kcal
5
10230
15215
60M/min
5x40HP
1500 (10k) Kcal
6
12230
17215
60M/min
6x40HP
1800 (10k) Kcal

Working Temp and Heat Source

  Heat source   Working Temp
  LPG. or NG  220° C max
  Themo Oil  220° C max
  Steam  6Kg/cm² : 130° C max
12Kg/cm² : 160° C max
  Steam+Electric  195° C max

※Our company has the rights to change the designs, if the sizes need to be modified,will not advise individuaiiy.※
