MODEL NO. |
A |
B |
D |
E1 |
E3 |
Working Width |
2000 |
2412 |
2700 |
2360 |
4130 |
4030 |
1850 |
2300 |
2712 |
3000 |
2660 |
4430 |
4330 |
2150 |
2500 |
2912 |
3200 |
2860 |
4630 |
4530 |
2350 |
2700 |
3112 |
3350 |
2960 |
4630 |
4530 |
2350 |
2800 |
3212 |
3450 |
3060 |
4930 |
4830 |
2650 |
3000 |
3412 |
3650 |
3260 |
5130 |
5030 |
2850 |
| Chanber | P |
L1 |
L2 |
Max Speed |

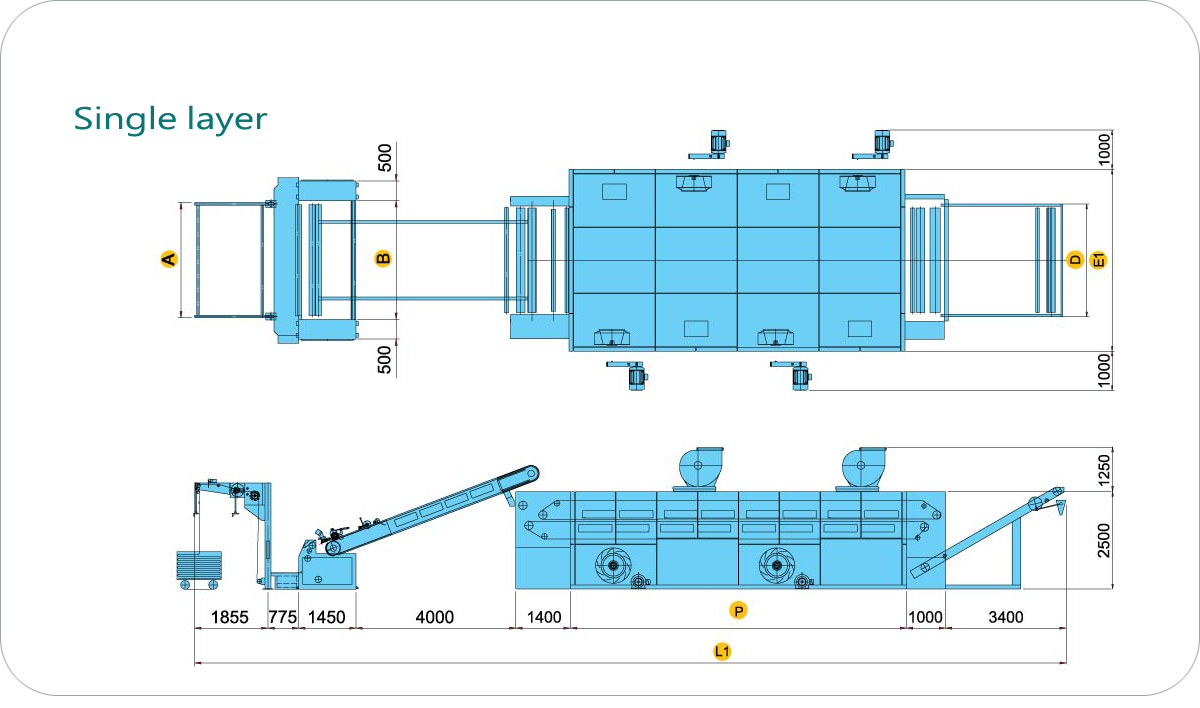

FAN HP single layer |
FAN HP single layer |
Heating Requirement |
2 |
4430 |
13545 |
18890 |
30M/min |
2x40HP |
4x25HP |
60(10K) KCal |
3 |
6530 |
15645 |
20990 |
30M/min |
3x40HP |
6x25HP |
90(10K) KCal |
4 |
8630 |
17745 |
23090 |
40M/min |
4x40HP |
8x25HP |
120(10K) KCal |
5 |
10730 |
19845 |
25190 |
60M/min |
5x40HP |
10x25HP |
150(10K) KCal |
6 |
12830 |
21945 |
27290 |
60M/min |
6x40HP |
12x25HP |
180(10K) KCal |
| Heat source | Working Temp |
| LPG. or NG | 220° C max |
| Themo Oil | 220° C max |
| Steam | 6Kg/cm² ： 130° C max 12Kg/cm² ： 160° C max |
| Steam+Electric | 195° C max |
※Our company has the rights to change the designs, if the sizes need to be modified,will not advise individuaiiy. ※
